Specialty Wire & Cable Manufacturer for Equipment Applications
Explore aerospace wires, high-temperature wires, C55 series cables, and specialized cables for data, power and control. At Jiangsu Yuhang, we manufacture wire and cable for equipment wiring and transmission applications, with custom cable development for project-specific requirements.
Find the Right Cable Family
Start with the job your cable needs to perform, then compare construction, electrical requirements and installation conditions within the relevant family.
Aerospace Wires & Cables
YHAX, YHE, YHER and YHF families provide starting points for wiring and transmission connections within aerospace equipment. Compare the conductor construction, insulation system and available space around the installation.
Selection focus: conductor construction, insulation and routing space.

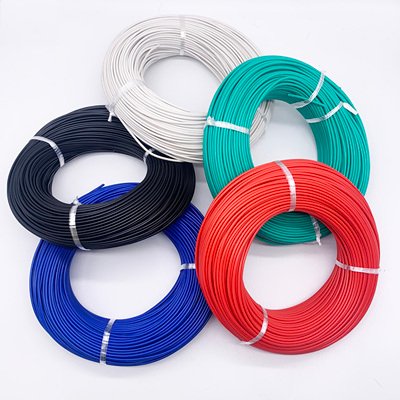

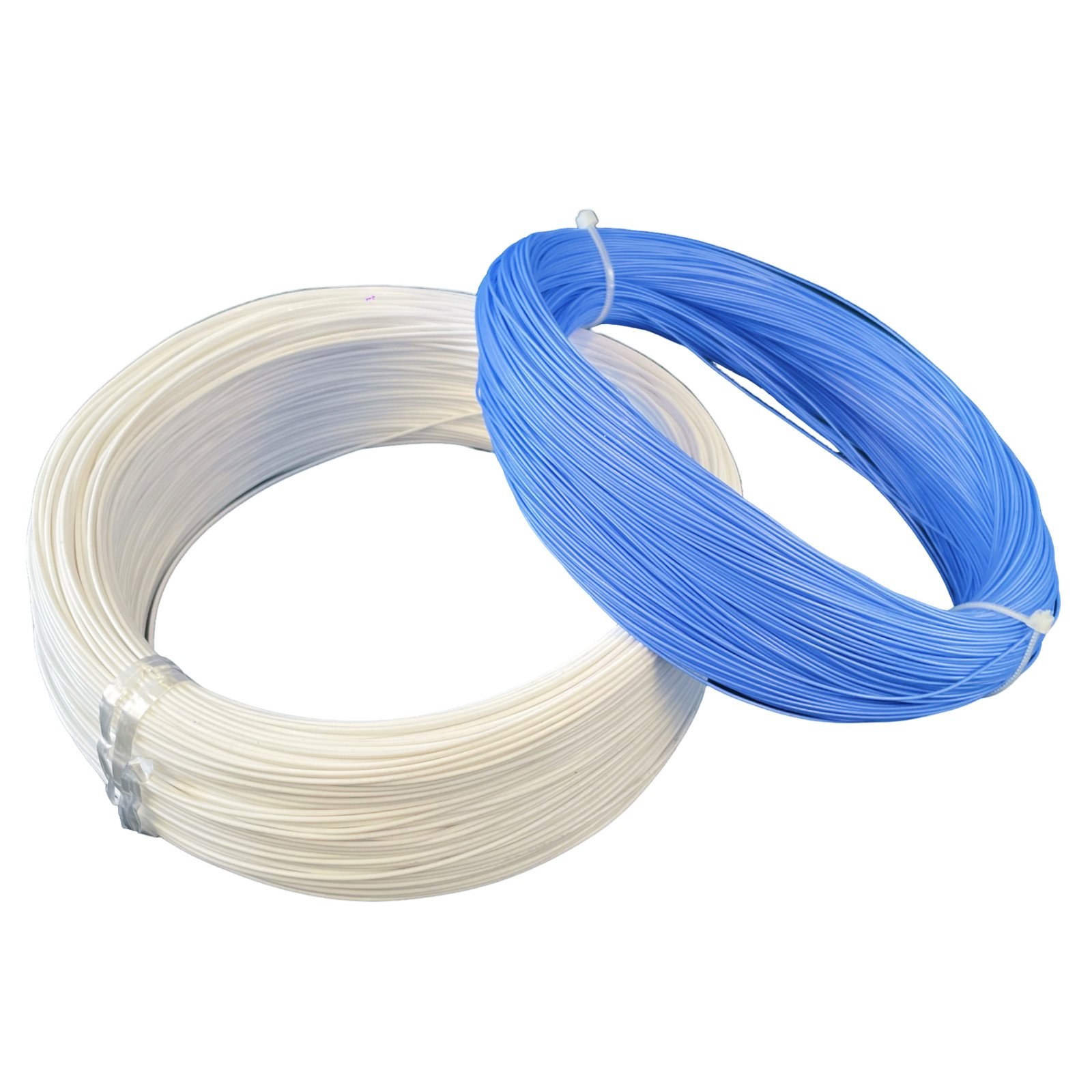

High-Temperature Wires
Explore AF and AFR installation wires with PTFE insulation or PTFE tape-wrapped constructions. Select the conductor material and insulation structure together with the required voltage and operating temperature.
Selection focus: insulation construction, conductor material and temperature rating.

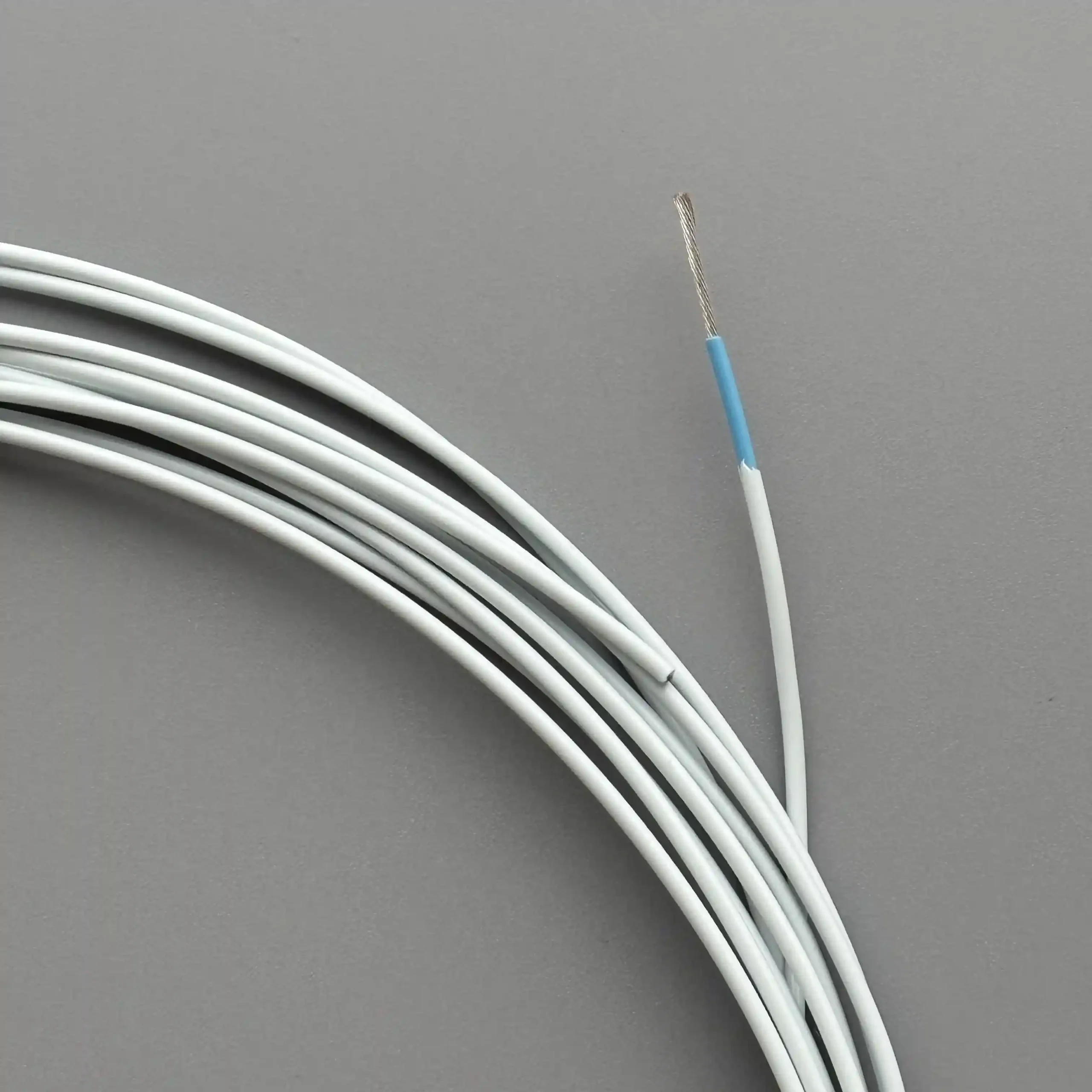

C55 Series Aerospace Cables
Our C55 series uses radiation-crosslinked ETFE insulation for aerospace wiring applications. Compare the specified wire gauge, core arrangement and shielding configuration for the selected model.
Selection focus: wire gauge, core arrangement and shielding.

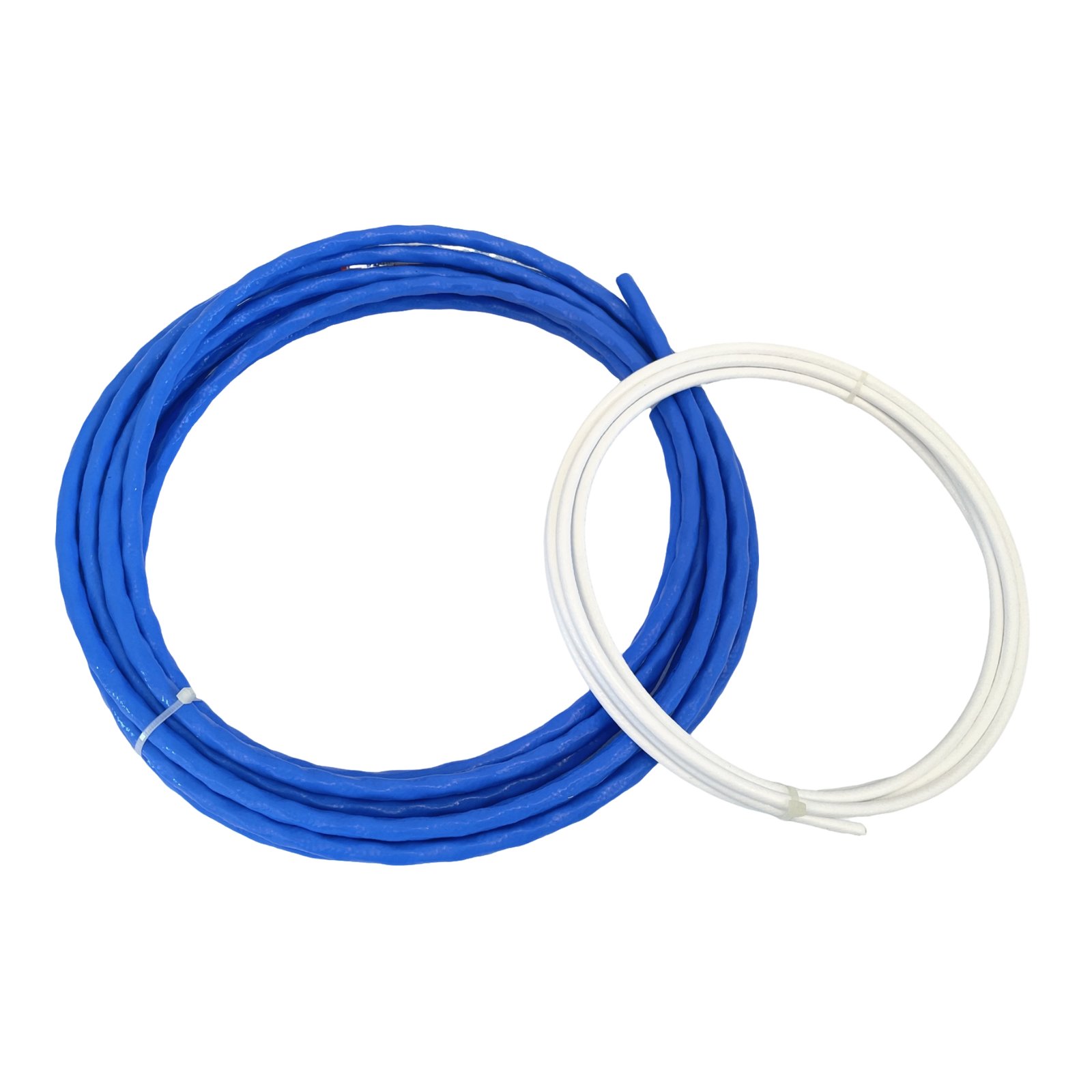

Data Bus & High-Speed Cables
Explore 1394, 1553B, LVDS, high-speed differential and aerospace digital cable families. Start with the required interface and transmission architecture, then evaluate impedance, pair construction and shielding.
Selection focus: interface, impedance and pair construction.

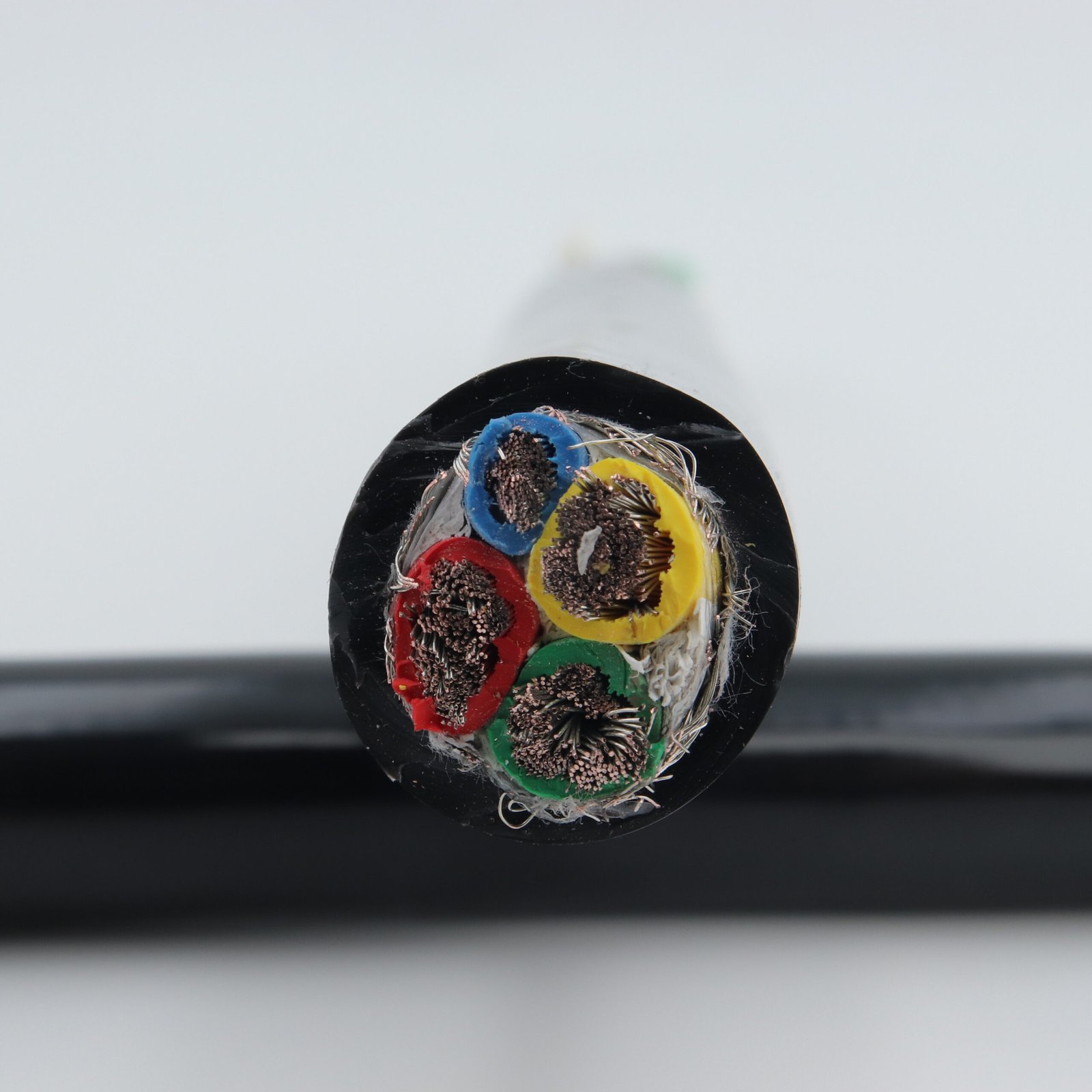

Field Power & Transmission Cables
SBKHRG, SBKH and field transmission cable families cover different power, control and information-transmission roles. Match the cable construction to its electrical duty, handling conditions and installation environment.
Selection focus: electrical duty, flexibility and environmental exposure.
Marine & Watertight Cables
Explore cable options for shipboard power, control and signal connections, together with longitudinal watertight cable constructions. Water exposure and water-blocking requirements need to be evaluated separately from the electrical function.
Selection focus: circuit function, installation location and water exposure.
-269°C Ultra-Low Temperature
Designed for extreme environments, this high-performance polyimide-insulated cable provides reliable signal and power transmission under ultra-low temperatures, ultra-high vacuum conditions and intense radiation.
Selection focus: core grouping, conductor size and shielding.
Match the Construction to the Installation
Limited Routing Space

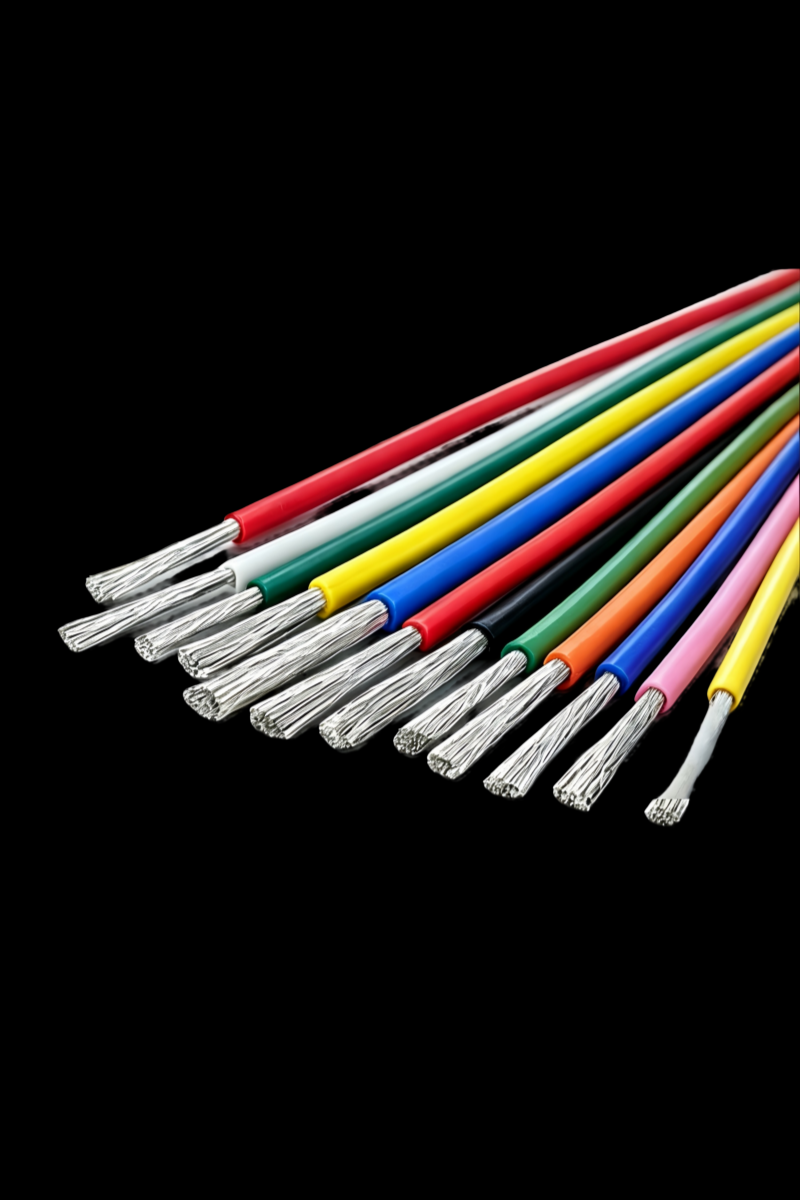

A compact installation needs more than a smaller cable diameter. Conductor construction and flexibility also affect routing and termination. The YHAX family uses a highly stranded conductor construction, providing a relevant starting point where flexible internal wiring is required.
Heat Around the Equipment
Temperature selection depends on the complete cable construction. Our AF and AFR families provide different PTFE-based insulation structures, while conductor material can change the applicable rating. Compare the specified configuration rather than selecting by a temperature number alone.
Signal Paths Near Power Circuits
A shielded cable is not automatically suitable for every signal interface. Our data bus and differential cable families give you distinct starting points for interface-specific selection. Pair arrangement, impedance and shield termination still need to match the equipment design.
Compare High-Temperature Wire Constructions
| Construction | Insulation | Conductor | Rated Temperature | Minimum Ambient Temperature | Rated AC Voltage |
|---|---|---|---|---|---|
| AF-250 | PTFE | Silver-plated copper | +250°C | −65°C | 250 V or 600 V, depending on model |
| AFR silver-plated-copper construction | PTFE tape-wrapped | Silver-plated copper | +250°C | −60°C | 110 V, 250 V or 600 V, depending on model |
| AFR bare-copper construction | PTFE tape-wrapped | Bare copper | +200°C | −60°C | 110 V, 250 V or 600 V, depending on model |
These examples apply to the specified constructions. They do not define a common rating for every product in the family. Model, conductor size and construction must be matched to the applicable specification; short-term exposure and test temperatures must not be treated as continuous operating ratings.
From Cable Selection to Custom Development
We bring several cable families into one product range, allowing the selection to begin with the electrical function and installation conditions rather than a generic cable description.
Construction Choices Within Product Families
AF and AFR provide different insulation constructions, while aerospace, data bus and field cable families address different wiring and transmission requirements. These distinctions help narrow the starting point before detailed model selection.
A Defined Starting Point for Custom Requirements
Our scope includes the development of non-standard specialty cables. An existing family can provide a starting point, while the feasibility of a custom construction depends on the project’s electrical, mechanical and environmental requirements.

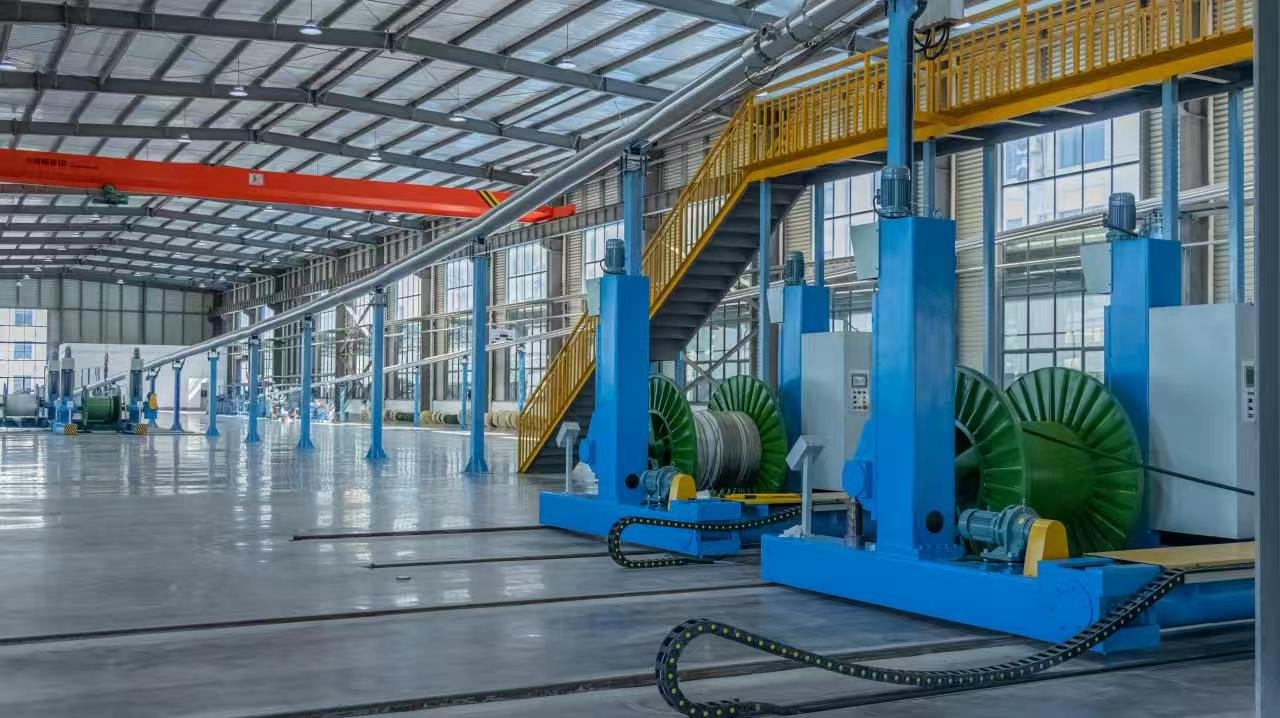

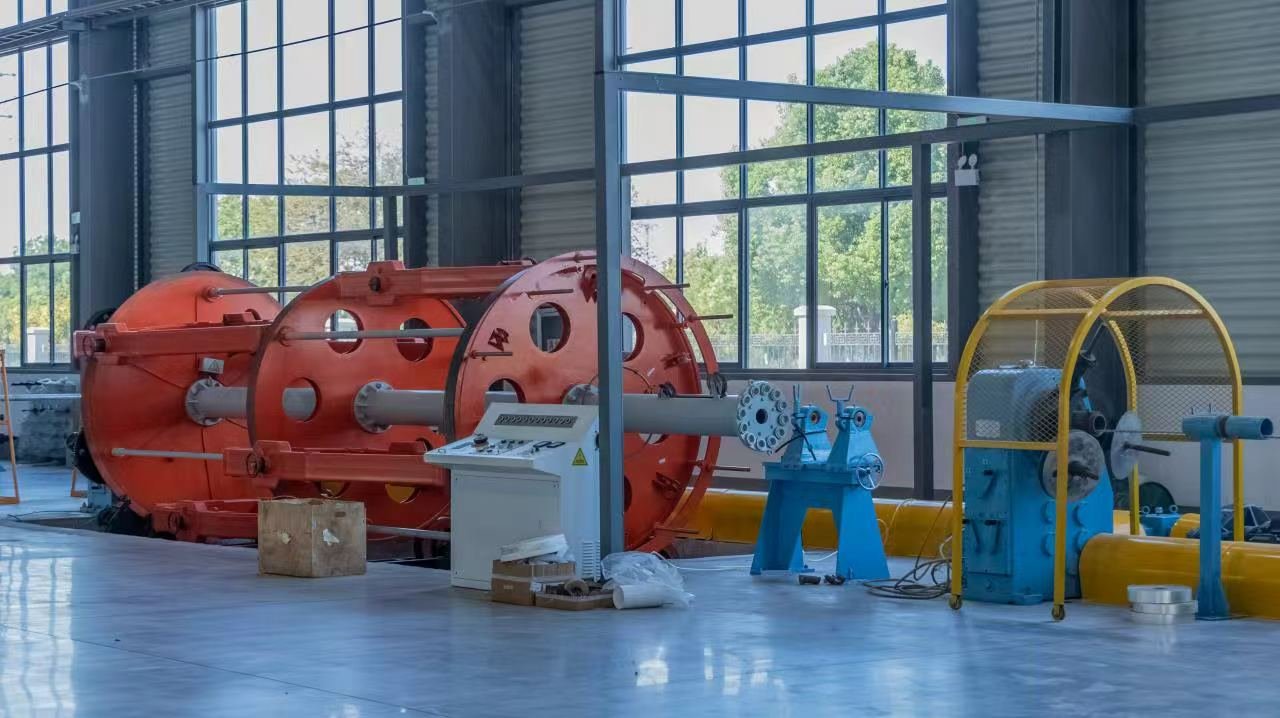

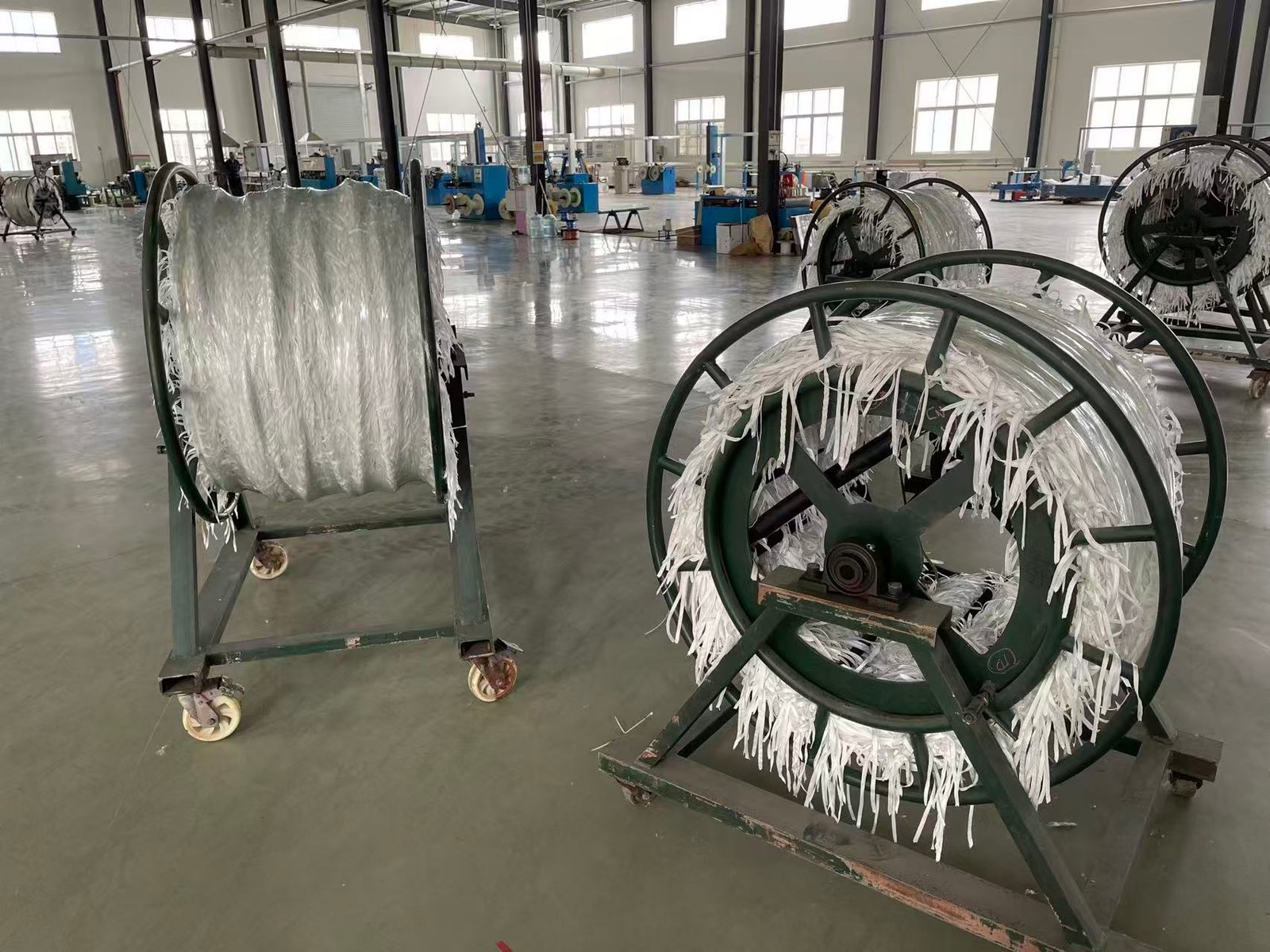

Manufacturing in Jiangsu, China
Founded in March 1999 and headquartered in Huai’an, Jiangsu, we develop, manufacture and sell products for transmission, networking and control applications. Our product range includes equipment wires, data cables and specialty power and control cables.
Cable Selection Guide
Should I choose by application or insulation material first?
Start with the electrical function and installation environment. An internal equipment wire, a data bus cable and a field power cable have different selection paths. Insulation material is then evaluated together with voltage, temperature, mechanical handling and the required construction.
For high-temperature internal wiring, AF and AFR provide PTFE-based starting points. For interface-driven signal transmission, begin with the relevant data bus or differential family.
Is C55 the same as every cable described as “Spec 55”?
A similar series name is not enough to establish interchangeability. Our C55 range should be evaluated using the exact model, conductor gauge, insulation construction, shielding and applicable specification. Do not assume another manufacturer’s approval or qualification transfers to a C55 model.
Does a shared temperature rating make two wires interchangeable?
No. The same temperature rating can apply to different conductor materials, insulation structures and voltage configurations. For example, conductor material changes the applicable temperature rating within the AFR range. Installation dimensions, termination requirements and the full specification also need to be compared.
Does watertight construction mean a cable is ready for any underwater installation?
No. Longitudinal water blocking and resistance to external water pressure describe different conditions. A cable for an underwater installation also needs a defined pressure or depth, exposure duration, electrical function and termination arrangement. The term “watertight” alone does not establish those limits.
Discuss Your Cable Project
Share the cable family or model you are considering, together with the installation conditions that matter most. For a custom requirement, include the electrical function, available space and operating environment.
